Product Details
＋

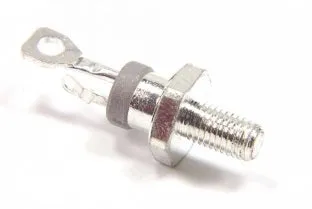

MS Power MSKP65S16M, Thyristor(SCR), 65Amp, 1600V, M8, Anode stud
Features
- Full blocking capability over wide temperature range
- Hermetic metal case with glass insulator
- Threaded stud
Applications
- Power Supplies
- Controlled Rectifiers
- AC Switch
- DC Motor Control
Specification
| MS Power Part Number | MST65S16M |
| Vrrm | 1600V |
| SCR Configuration | Anode Stud |
| IF(av) @ 100 Deg C | 102 Amp |
| IF(av) @ 125 Deg C | 65 Amp |
| Itsm | 1.1 kA |
| VF(to) | 0.9V |
| I(gt) | 150mA |
| Tj(max) | 125°C |
| rF | 4.70mΩ |
| Termination Style (No Tail) | 4mm & 1.3mm Solder Tab |
| Termination Style (Stud) | M8 |
| Tail Length to Stud | N/A |
| R th(j-c) | 0.45°C/W |
| R th(c-h) | 0.20°C/W |
| Weight | 25g |
| Mounting Torque | 4 Nm |
| Factory Pack Qty | 10 |
| Country Of Origin | China |
| MS Power Headquarters | Germany |
